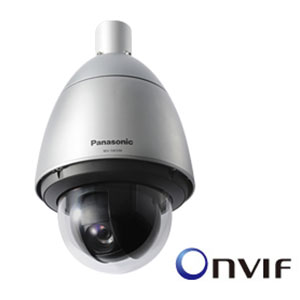

Camera
|
|
Image Sensor
|
Approx.1/3 type MOS Sensor
|
|
Effective Pixels
|
Approx. 2.4 megapixel
|
|
Scanning Mode
|
Progressive scan
|
|
Scanning Area
|
5.38 mm (H) x 3.02 mm (V) {7/32 inches (H) × 1/8 inches (V)}
|
|
Minimum Illumination
|
Color: 0.5 lx, BW: 0.06 lx (F1.6, Auto slow shutter: Off (1/30s), Gain:On(High))
Color: 0.03 lx, BW 0.004 lx (F1.6, Auto slow shutter: Max. 16/30s, Gain:On(High)) *1
|
|
White Balance
|
AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K),
ATW2 (2,000 ~ 6,000 K)
|
|
Light Control Mode
|
Outdoor scene:
Automatic integration of ALC and ELC
Indoor scene [50 Hz]:
Automatic integration of ALC and ELC (up to 1/100 s)
Indoor scene [60 Hz]:
Automatic integration of ALC and ELC (up to 1/120 s)
Fix shutter
|
|
Shutter Speed
|
Fix shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at Super Dynamic Off)
|
|
Super Dynamic
|
ON / OFF
|
|
Face Super Dynamic
|
ON / OFF (Only at Super Dynamic: ON)
|
|
Adaptive Black Stretch
|
ON / OFF (Only at Super Dynamic: OFF)
|
|
Fog compensation
|
ON / OFF
|
|
AGC
|
ON (LOW, MID, HIGH) / OFF
|
|
Electronic Sensitivity UP
|
OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))
|
|
Day & Night (IR)
|
Mode: AUTO1 / AUTO2 / AUTO3 / ON / OFF, Level:High / Low, with external control
|
|
Digital Noise Reduction
|
High / Low
|
|
Video Motion Detection
|
4 areas, Sensitivity: 15 steps, Detection size: 10 steps
|
|
Privacy Zone
|
Up to 8 zones / Up to 32 zones, Gray / Mosaic
|
|
Image Stabilizer
|
ON / OFF
|
|
VIQS
|
Up to 2 zones at preset position 1-8 and except preset
|
|
Double Image Reduction
|
ON / OFF
|
|
Camera Title (OSD)
|
Up to 20 characters (alphanumeric characters, marks)
|
|
Focus distance
|
Limited / Unlimited
|
|
Lens
|
|
Focal Length
|
4.3 mm ~129.0 mm, 30x
|
|
Zoom Ratio
|
30x / 90x with extra optical zoom (at 640x360)
|
|
Digital (Electrical) Zoom
|
12x (Max. 1080x combined with extra optical zoom at 640x360)
|
|
Angular Field of View
|
H: 2.6° (TELE) ~ 64.6° (WIDE)
V: 1.6° (TELE) ~ 38.2° (WIDE)
|
|
Maximum Aperture Ratio
|
1 : 1.6 (WIDE) ~ 4.7 (TELE)
|
|
Focusing Range
|
2.0 m ~ ∞
|
|
Aperture Range
|
F1.6 ~ Close
|
|
Pan and Tilt
|
|
Panning Range
|
360° endless
|
|
Panning Speed
|
Manual: approx. 0.065°/s ~ 120°/s, Up to 256 steps (depending on the controller)
Preset: up to approx. 300°/s
|
|
Tilting Range
|
–15° ~ 195° (upward-level-downward)
Selectable tilting angle: 0° / –5°/ –10° / –15
|
|
Tilting Speed
|
Manual: approx. 0.065°/s ~ 120°/s, Up to 256 steps (depending on the controller)
Preset: up to approx. 300°/s
|
|
Proportional Pan/Tilt Control
|
Yes
|
|
Number of Preset Positions
|
256
|
|
Auto Mode
|
preset sequence / auto pan / auto track / patrol
|
|
Image Hold
|
ON / OFF
|
|
PTZ Position Display
|
ON / OFF
|
|
Self Return
|
10 s / 20 s / 30 s / 1 min / 2 min / 3 min / 5 min / 10 min / 20 min / 30 min / 60 min
|
|
Map Shot
|
360° map shot / preset map shot
|
|
Browser GUI
|
|
Camera Control
|
Pan/Tilt (256 steps), Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program, Auto mode
|
|
Display Mode
|
Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available.
|
|
Camera Title
|
Up to 20 alphanumeric characters
|
|
Clock Display
|
Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
|
|
Alarm Control
|
Reset
|
|
One Shot Capture
|
A still picture will be displayed on a newly opened window.
|
|
Audio
|
Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High,
Audio Output: ON / OFF Volume adjustment: Low / Middle / High
|
|
SD Memory Data Download
|
Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded.
|
|
GUI/Setup Menu Language
|
English / Italian / French / German / Spanish / Russian / Chinese / Japanese
|
|
System Log
|
Up to 100 (Internal)
Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs
|
|
Supported OS *2 *3
|
Microsoft® Windows® 8, Microsoft® Windows® 7,
Microsoft® Windows Vista®, Microsoft® Windows® XP SP3
|
|
Supported Browser
|
Windows® Internet Explorer® 10.0 (32 bit), Windows® Internet Explorer® 9.0 (32 bit),
Windows® Internet Explorer® 8.0 (32 bit),Windows® Internet Explorer® 7.0 (32 bit)
|
|
Network
|
|
Network IF
|
10Base-T / 100Base-TX, RJ-45 connector
|
|
Image Resolution
|
|
Image Capture Mode:
2 mega pixel [16:9]
|
H.264 :
1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps
JPEG (MJPEG):
1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps
|
|
Image Capture Mode:
1.3 mega pixel [16:9]
|
H.264 :
1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
JPEG (MJPEG):
1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
|
|
Image Capture Mode:
1.3 mega pixel [4:3]
|
H.264 :
1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps
JPEG (MJPEG):
1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps
|
|
H.264 *4
|
|
Transmission Mode
|
Constant bitrate / Frame rate priority / Best effort /Advanced VBR
|
|
Frame Rate
|
1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
|
|
Bit Rate/Client
|
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 6,144 / 8,192 / 10,240 / 12,288 / 14,336 kbps
|
|
Image Quality
|
LOW / NORMAL / FINE
|
|
Refresh Interval
|
0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 s
|
|
Transmission Type
|
UNICAST / MULTICAST
|
|
JPEG
|
|
Image Quality
|
10 steps
|
|
Refresh Interval
|
0.1 fps ~ 30 fps
|
|
Transmission Type
|
PULL / PUSH
|
|
Audio Compression
|
G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps for transmitting, AAC for audio recording and sound detection
|
|
Audio Mode
|
OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
|
|
Authentication for Audio
|
Level 1 only / Level 2 higher / All users
|
|
Total Bit Rate
|
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
|
|
Supported Protocol
|
IPv6:
TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6 , ICMP, ARP
IPv4:
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP , IGMP , ICMP , ARP
|
|
FTP Client
|
Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available. )
|
|
No. of Simultaneous Users
|
Up to 14 users (Depends on network conditions)
|
|
SDXC/SDHC/SD Memory Card (Option)
|
H.264 recording (Audio recording is enable):
Manual REC / Alarm REC (Pre/Post) / Schedule REC
JPEG recording:
Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SD (SDHC/SDXC) card: Panasonic
2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64GB** model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
|
|
Cellular Phone Compatibility
|
JPEG image
|
|
Mobile Terminal Compatibility
|
iPad, iPhone, iPod touch
|
|
Alarm
|
|
Alarm Source
|
3 terminals input, VMD, Command alarm, Sound detection
|
|
Alarm Actions
|
SDXC/SDHC/SD memory recording, E-mail notification,
Indication on browser, FTP image transfer, Panasonic protocol output
|
|
Alarm Log
|
With SDXC / SDHC / SD memory card: 5,000 logs,
without SDXC / SDHC / SD memory card: 1,000 logs
|
|
Schedule
|
Alarm / VMD / Access permission / H.264 recording / Sound detection
|
|
Input/Output
|
|
Monitor Output
(for adjustment)
|
VBS : 1.0V[p-p] / 75Ω ,
NTSC / PAL composite, BNC Jack
|
|
Microphone/Line Input
|
MIC IN and Line IN are selectable. ∅3.5 mm stereo mini jack
(monaural input) (Applicable microphone: Plug-in power type)
Supply voltage: 2.5 V ±0.5 V Input impedance: approx. 2 kΩ
|
|
Audio Output
|
∅3.5 mm stereo mini jack (monaural output) Line level
|
|
External I/O Terminals
|
ALARM IN 1 / DAY/NIGHT IN, ALARM IN 2 / ALARM OUT, ALARM IN 3 / AUX OUT
|
|
General
|
|
Safety/EMC Standard
|
<Safety>
UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1
<EMC>
FCC Part15 Class A, ICES-003 Class A, EN55022 Class B, EN55024
|
|
Power Source and
Power Consumption
|
AC24 V : 3.5 A, 55 W
PoE+ : 470 mA, 25 W (IEEE802.3at compliant)
POE Injector (60 W) : 1.0 A, 50 W
|
|
Ambient Operating
Temperature
|
AC24 V and PoE Injector (60 W) : –50 °C ~ +55 °C (-58 °F ~ 131 °F) * with limitations
POE+ : -30°C ~ +55°C (-22 °F ~ 131 °F)
|
|
Ambient Operating Humidity
|
Less than 90 % (no condensation)
|
|
Water and Dust Resistance
|
IP66, IEC60529 measuring standard compatible
|
|
Dimensions
|
∅229 mm x 392 mm(H) {∅9-1/32 inches x 15-7/16 inches(H)}
diameter of the dome 160 mm(6-5/16 inches)
|
|
Mass (approx.)
|
Approx. 5.0 kg { 11.04 lbs}
|
|
Finish
|
Main body : Aluminum die cast, Natural silver
Sunshields : ASA resin coating, Natural silver
Dome section : Clear polycarbonate resin
|
