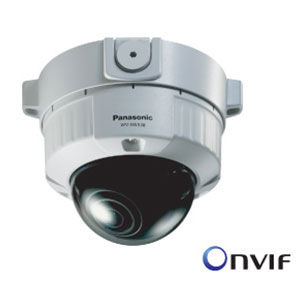

WV-SW558

  • Super high resolution at Full HD/1,920 x 1,080 created by 3.1Megapixel high sensitivity MOS Sensor.

  •  1,080p Full HD images up to 30 fps and 360p image up to 30fps simultaneously.

  •  Combining enhanced “UniPhier®”, Panasonic’s proprietary System LSI platform and 2 areas VIQS (Variable Image Quality on Specified area) function can decrease maximum 50%*1 network bandwidth.

  •  Cropping function enables to provide whole image (1,920 x 1,080) and the part image (640 x 360) simultaneously.Up to 4 image capture areas can be specified, and it is also possible to control the sequence.

  •  Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by enhanced “UniPhier®”.

  •  Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range compared to conventional cameras.

  •  Face Super Dynamic Range technology ensures clear face image.

  •  High sensitivity with Day & Night (IR) function:0.5 lx (Color), 0.06 lx (B/W) at F1.3 (WV-SW559)

  •  High sensitivity with Day & Night (Electrical) function:0.5 lx (Color), 0.3 lx (B/W) at F1.3 (WV-SW558)

  •  Using Panasonic distinctive LDC (Lens Distortion Compensation) function, natural image without distortion can be monitored though using wide angle lens.

  •  ABF (Auto Back Focus) ensures easy installation.

  •  ABF ensures stable focus in both color and B/W modes. (WV-SW559)

  •  Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.

  •  Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving.

  •  Superior color reproduction by primary (RGB) color filter.

  •  Electronic sensitivity enhancement: Auto (Up to 16x) / OFF

  •  Selectable light control modes: Outdoor scene / Indoor scene (50 Hz) / Indoor scene (60 Hz) / ELC / Fixed electronic shutterOutdoor scene: Electronic shutter and ALC lens iris control are automatically controlled depending on the mode and luminance level.Indoor scene (50 Hz / 60 Hz): Flicker caused by fluorescent lightning will be automatically compensated ELC: Up to 1/10,000 Electronic shutter is automatically applied for

  • a fix iris lens Fixed electronic shutter: Up to 1/10,000 fixed electronic shutter can be selectable.

  •  3x Extra optical zoom at 360p resolution. (Picture Mode : 2 Mega pixel [16:9] )

  •  VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size

  •  Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits.

  •  2x, 4x digital zoom controlled by browser.

  •  Camera title display: Up to 20 alphanumeric characters on the browser

  •  Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDXC/SDHC/SD memory recording(WV-SW559), FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, and Panasonic alarm protocol output.

  •  Full duplex bi-directional audio allows interactive communication between camera site and monitoring site. (WV-SW559)

  •  JPEG Image compression ratio can be changed by alarm so that higher quality image can be provided.

  •  Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate.

  •  SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG) (WV-SW559)

  •  H.264 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate.

  •  Internet mode: H.264 images can be transmitted over HTTP protocol.

  •  Multi-language: English / Italian / French / German / Spanish / Russian / Chinese / Japanese

  •  IPv4/IPv6 protocol supported.

  •  Supports SSL, DDNS (viewnetcam, RFC2136)

  •  Still images (JPEG) can be viewed on mobile phones via the Internet.

  •  Onvif compliant model

  •  IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard.

  •  Vandal resistant mechanism for high reliability

  •  2.8 ~ 10.0 mm, 3.6x Varifocal Auto Iris Lens



    Camera

    Image Sensor

    1/3 type MOS Sensor

    Effective Pixels

    Approx. 3.1 megapixel

    Scanning Mode

    Progressive scan

    Scanning Area

    4.51 mm (H) x 3.38 mm (V) {3/16 inches (H) x 1/8 inches (V)}

    Minimum Illumination

    Color: 0.5 lx, BW: 0.3 lx (F1.3, Auto slow shutter: Off (1/30s), Gain:On(High))
    Color: 0.03 lx, BW 0.02 lx (F1.3, Auto slow shutter: Max. 16/30s, Gain:On(High)) *1

    White Balance

    AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)

    Light Control Mode

    Outdoor scene: Automatic integration of ALC and ELC
    Indoor scene [50 Hz]: Automatic integration of ALC and ELC (up to 1/100 s)
    Indoor scene [60 Hz]: Automatic integration of ALC and ELC (up to 1/120 s)
    ELC: (up to 1/10,000 sec.)

    Shutter Speed

    Fix shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120,
    1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at Super Dynamic Off)

    Super Dynamic

    ON / OFF

    Dynamic Range

    52 dB typ. (Super Dynamic: ON, Light Control Mode: indoor)

    Face Super Dynamic

    ON / OFF (Only at Super Dynamic: ON)

    Adaptive Black Stretch

    ON / OFF (Only at Super Dynamic: OFF)

    AGC

    ON (LOW, MID, HIGH) / OFF

    Electronic Sensitivity UP

    OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))

    Day & Night

    Electrical Mode: OFF / AUTO

    Digital Noise Reduction

    High / Low

    Video Motion Detection

    4 areas, Sensitivity: 15 steps, Detection size: 10 steps

    Privacy Zone

    Up to 2 zones, Gray

    Upside Down

    ON / OFF

    VIQS

    Up to 2 zones

    Camera Title (OSD)

    Up to 20 characters (alphanumeric characters, marks)

    Focus Adjustment

    ABF/MANUAL

    Lens Distortion Conpensation

    256 steps

    Lens

    Focal Length

    2.8 mm - 10 mm, 3.6x (8.4 mm - 30 mm 10.8x with Extra optical zoom (at 360P))

    Angular Field of View*2

    H: 24.2 °(TELE) ~ 86.6 °(WIDE)

    Maximum Aperture Ratio

    1 : 1.3 (WIDE) ~ 1 : 3.0 (TELE)

    Focusing Range

    0.3 m ~ ∞

    Adjusting Angle

    Adjusting Angle

    Horizontal: 180 ° (clockwise), 160 ° (counterclockwise), Vertical: ±75 °, Image tilt adjustment range: ±100 °

    Browser GUI

    Cropping

    H.264(2) / JPEG(VGA or 640 x 360) / JPEG(QVGA or 320 x 180)
    Up to 4 image capture areas can be specified

    Camera Control

    Brightness, AUX ON / OFF, Zoom (1x, 2x 4x)

    Display Mode

    Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available.

    Digital Zoom

    1x, 2x, 4x controlled by browser GUI

    Camera Title

    Up to 20 alphanumeric characters

    Clock Display

    Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)

    Alarm Control

    Reset

    One Shot Capture

    A still picture will be displayed on a newly opened window.

    GUI/Setup Menu Language

    English, Japanese, Italian, French, German, Spanish, Chinese, Russian

    System Log

    Up to 100 (Internal)

    Supported OS *3 *4

    Microsoft® Windows® 7, Microsoft® Windows Vista®,Microsoft® Windows® XP SP3

    Supported Browser

    Windows® Internet Explorer® 9.0 (32 bit), Windows® Internet Explorer® 8.0 (32 bit),
    Windows® Internet Explorer® 7.0 (32 bit), Microsoft® Internet Explorer® 6.0 SP3

    Network

    Network IF

    10Base-T / 100Base-TX, RJ-45 connector

    Image Resolution

    Image Capture Mode:
    2 mega pixel [16:9]

    H.264: 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps
    JPEG (MJPEG): 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps

    Image Capture Mode:
    1.3 mega pixel [16:9]

    H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
    JPEG (MJPEG): 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps

    Image Capture Mode:
    1.3 mega pixel [4:3]

    H.264: 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps
    JPEG (MJPEG): 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps

    Image Capture Mode:
    3 mega pixel [4:3]

    H.264: 1,280 x 960, up to 15 fps
    JPEG (MJPEG): 2,048 x1,536, up to 15 fps

    H.264 *5

    Transmission Mode

    Constant bitrate / Framerate priority / Best effort

    Frame Rate

    1 / 3 / 5 / 7.5 / 12 / 10 / 15 / 20 / 30 fps

    Bit Rate/Client

    64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /
    4,096 / 8,192 / 10,240 / 12,288 / 14,336 kbps

    Image Quality

    LOW / NORMAL / FINE

    Refresh Interval

    0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 s

    Transmission Type

    UNICAST / MULTICAST

    JPEG

    Image Quality

    10 steps

    Refresh Interval

    0.1 fps ~ 30 fps

    Transmission Type

    PULL / PUSH

    Total Bit Rate

    64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited

    Supported Protocol

    IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6,ICMP,ARP
    IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS,
    NTP, SNMP, UPnP,IGMP,ICMP,ARP

    FTP Client

    Alarm image transmission, FTP periodic transmission

    No. of Simultaneous Users

    Up to 14 users (Depends on network conditions)

    Cellular Phone Compatibility

    JPEG image

    Mobile Terminal Compatibilty*6

    iPad, iPhone, iPod touch (iOS 4.2.1 or later) , Android™ mobile terminals

    Face Detection

    ON / OFF

    Alarm

    Alarm Source

    1 terminal input, VMD, Command alarm

    Alarm Actions

    E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output

    Alarm Log

    1000 logs

    Schedule

    Alarm / VMD / Access permission / H.264 recording

    Input/Output

    Monitor Output
    (for adjustment)

    NTSC
    VBS: 1.0 V [p-p]/75 Ω, NTSC composite, RCA Jack
    PAL
    VBS: 1.0 V [p-p]/75 Ω, PAL composite, RCA Jack

    External I/O Terminals

    ALARM IN, ALARM OUT, AUX OUT

    General

    Safety/EMC Standard

    NTSC
    UL (UL60950-1), FCC (Part15 ClassA),
    C-UL (CAN/CSA C22.2 No.60950-1),
    DOC (ICES003 ClassA)
    PAL
    CE, IEC60950-1
    (EN55022 ClassB, EN55024)

    Power Source and
    Power Consumption

    12V DC: 830 mA *, PoE (IEEE802.3af compliant) / PoE 48 V: 175 mA (Class 0 device)
    * FOR UL LISTED MODEL(S), ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY.

    Ambient Operating Temperature

    -40 °C ~ +50 °C (-40 °F ~ 122 °F)

    Ambient Operating Humidity

    Less than 90 % (no condensation)

    Water and Dust Resistance

    IP66, IEC60529 measuring standard compatible

    Shock Resistance

    Compliant with 50 J (IEC 60068-2-75)/IK10 (IEC 62262)

    Dimensions

    ∅164 mm x 146 mm (H) x 191.5 mm (W)
    {∅6-15/32 inches x 5-3/4 inches (H) x 7-17/32 inches (W)} (Base Cover)

    Mass (approx.)

    1.6 kg (3.53 lbs)

    Finish

    Main body: Aluminum die cast, light gray,
    Dome section: Clear polycarbonate resin
