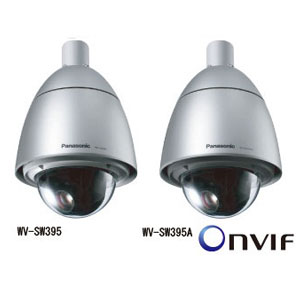

Camera
|
|
Image Sensor
|
1/4 type MOS Sensor
|
|
Effective Pixels
|
Approx. 1.3 megapixel
|
|
Scanning Mode
|
Progressive scan
|
|
Scanning Area
|
Minimum Illumination 3.6 mm (H) x 2.7 mm (V) {5/32 inches (H) × 11/100 inches (V)}
Color: 0.5 lx, B/W: 0.06 lx at F1.4 (Shutter: 1/30 s, AGC: High),
Color: 0.031 lx, B/W: 0.004 lx at F1.4 (Shutter: 16/30 s, AGC: High)
|
|
White Balance
|
AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
|
|
Light Control Mode
|
Indoor scene (50 Hz / 60 Hz) / Outdoor scene / Fix shutter
|
|
Shutter Speed
|
Fix shutter: OFF (1/30), 3/100, 3/120, 2/100, 2/120, 1/100,
1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000
|
|
Super Dynamic
|
ON / OFF
|
|
Face Super Dynamic
|
ON / OFF (Only at Super Dynamic: ON)
|
|
Dynamic Range
|
52 dB typical (Super Dynamic: ON, Light Control mode: Indoor)
|
|
Adaptive Black Stretch
|
ON / OFF
|
|
AGC
|
ON (LOW, MID, HIGH ) / OFF
|
|
Electronic Sensitivity UP
|
OFF, max. 2/30 s, max. 4/30 s, max. 6/30 s, max. 10/30 s, max. 16/30 s
|
|
Black and White Mode
|
Mode: AUTO1 / AUTO2 / AUTO3 / ON / OFF
|
|
Digital Noise Reduction
|
High / Low
|
|
Video Motion Detection
|
4 areas, Sensitivity: 15 steps, Detection size: 10 steps
|
|
Privacy Zone
|
Up to 8 zones, Gray / Mosaic
|
|
Auto Image Stabilizer
|
ON / OFF
|
|
Camera Title (OSD)
|
Up to 20 alphanumeric characters (3 selectable character sizes)
|
|
Lens
|
|
Focal Length
|
3.3 mm ~ 119 mm
|
|
Zoom Ratio
|
36x / 72x with extra optical zoom (at VGA)
|
|
Digital (Electronic) Zoom
|
12x (Max. 864x combined with extra optical zoom at VGA)
|
|
Angular Field of View
|
H: 1.7° (Tele) ~ 60.2° (Wide), V: 1.3° (Tele) ~ 46.0° (Wide)
|
|
Maximum Aperture Ratio
|
1 : 1.4 (Wide) ~ 4.8 (Tele)
|
|
Focusing Range
|
2.0 m ~ ∞
|
|
Aperture Range
|
F1.4 ~ 22, Close
|
|
Pan and Tilt
|
|
Panning Range
|
360° endless
|
|
Panning Speed
|
Manual:
approx. 0.065°/s ~ 120°/s, Up to 256 steps
(depending on the controller)
Preset:
up to approx. 400°/s
|
|
Tilting Range
|
–15° ~ 185° (upward-level-downward)
Tilting angle limit: 10° / 5° / 3° / 0° / –3° / –5° / –10° / –15°
|
|
Tilting Speed
|
Manual:
approx.0.065°/s ~ 120°/s, Up to 256 steps
(depending on the controller)
Preset:
up to approx. 400°/s
|
|
Proportional Pan/Tilt Control
|
Yes
|
|
Number of Preset Positions
|
256
|
|
Auto Mode
|
preset sequence / auto pan / auto track / patrol
|
|
Image Hold
|
ON / OFF
|
|
PTZ Position Display
|
ON / OFF
|
|
Self Return
|
10 s / 20 s / 30 s / 1 min / 2 min / 3 min / 5 min / 10 min / 20 min / 30 min / 60 min
|
|
Map Shot
|
360° map shot / preset map shot
|
|
Browser GUI
|
|
Camera Control
|
Pan/Tilt (16 steps), Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program, Auto mode
|
|
Display Mode
|
Spot, Quad:
Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available.
|
|
Camera Title
|
Up to 20 alphanumeric characters
|
|
Clock Display
|
Time:
12H / 24H, Date: 5 formats on the browser, Summer time (Manual/AUTO)
|
|
Alarm Control
|
Reset
|
|
One Shot Capture
|
A still picture will be displayed on a newly opened window.
|
|
Audio
|
Mic (Line) Input:
ON / OFF Volume adjustment: Low / Middle / High,
Audio Output:
ON / OFF Volume adjustment: Low / Middle / High
|
|
SD Memory Data Download
|
Still or motion images recorded in the SDHC/SD memory card can be downloaded.
|
|
GUI/Setup Menu Language
|
[NTSC]
English, French (Installation required for French)
[PAL]
English, French, Italian, Spanish, (Installation required for French) German, Russian (Installation required except for English)
|
|
System Log
|
Up to 100 (Internal), Up to 4,000 (SDHC/SD memory when the recording format is set to JPEG.) error logs
|
|
Supported OS *1
|
Microsoft® Windows® 7
Microsoft® Windows Vista®
Microsoft® Windows® XP SP3
|
|
Supported Browser
|
Windows® Internet Explorer® 9.0 (32 bit)
Windows® Internet Explorer® 8.0 (32 bit)
Windows® Internet Explorer® 7.0 (32 bit)
Microsoft® Internet Explorer® 6.0 SP3
|
|
Network
|
|
Network IF
|
10Base-T / 100Base-TX, RJ-45 connector
|
|
Image Resolution *2 *3
|
|
Aspect ratio:
[4 : 3]
|
H.264:
1,280 × 960 / 800 × 600 / VGA (640 × 480) / QVGA (320 × 240), up to 30 fps
MPEG-4:
VGA (640 × 480) / QVGA (320 × 240), up to 30 fps
JPEG (MJPEG):
1,280 × 960 / 800 × 600 / VGA (640 × 480) / QVGA (320 × 240), up to 30 fps
|
|
Aspect ratio:
[16 : 9]
|
H.264:
1,280 × 720 / 640 × 360 / 320 × 180, up to 30 fps
JPEG (MJPEG):
1,280 × 720 / 640 × 360 / 320 × 180, up to 30 fps
|
|
H.264/MPEG-4 *2
|
|
Transmission Mode
|
Constant bitrate / Framerate priority / Best effort
|
|
Frame Rate
|
1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
|
|
Bit Rate/Client
|
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8,192* kbps / Unlimited
* H.264 mode only
|
|
Image Quality
|
LOW / NORMAL / FINE
|
|
Refresh Interval
|
0.2 s / 0.25 s / 0.33 s / 0.5 s / 1 s / 2 s / 3 s / 4 s / 5 s
|
|
Transmission Type
|
UNICAST / MULTICAST
|
|
JPEG(MJPEG)
|
|
Image Quality
|
10 steps
|
|
Transmission Type
|
PULL / PUSH
|
|
Audio Compression
|
G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps
|
|
Audio Mode
|
OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
|
|
Authentication for Audio
|
Level 1 only / Level 2 higher / All users
|
|
Total Bit Rate
|
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
|
|
Supported Protocol
|
IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP
|
|
FTP Client
|
Alarm image transfer, Periodic image transfer (When the FTP periodic transmission is failed, backup on an optional SDHC/SD memory card is available.)
|
|
No. of Simultaneous Users
|
Up to 14 users (Depends on network conditions)
|
|
SDHC/SD Memory Card(Option)
|
H.264 recording:
Manual REC / Alarm REC (Pre/Post) / Schedule REC
JPEG recording: Manual REC / Alarm REC (Post) / Backup upon network failure
Compatible SD (SDHC) card:
Panasonic 256 MB, 512 MB, 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB* model
* SDHC card
|
|
Cellular Phone Compatibility
|
JPEG image, panning/tilting/zoom control, AUX control (by access level)
|
|
Mobile Terminal Compatibility *6
|
iPad, iPhone, iPod touch (iOS 4.2.1 or later) AndroidTM mobile terminals
|
|
Alarm
|
|
Alarm Source
|
3x Terminal inputs, VMD, Command alarm , Auto track
|
|
Alarm Actions
|
SD memory recording, E-mail notification, Indication on browser, Camera positioning, Preset position 1 ~ 64, FTP image transfer, Terminal output, Panasonic protocol output, Auto track
|
|
Alarm Log
|
With SD memory card: 5,000 logs, Without SD memory card: 1,000 logs
|
|
Schedule
|
Alarm/VMD/Access permission, Preset position call, Position refresh, H.264 recording
|
|
Input/Output
|
|
Monitor Output
(for adjustment)
|
[NTSC]
1.0 V [P-P] / 75 Ω, NTSC composite, BNC
[PAL]
1.0 V [P-P] / 75 Ω , PAL composite, BNC
|
|
Microphone/Line Input
|
MIC IN and Line IN are selectable.∅3.5 mm monaural mini jack
(Applicable microphone: Plug-in power type),
Supply voltage: 2.5 V ±0.5 V, Input impedance: approx. 2 kΩ
|
|
Audio Output
|
∅3.5 mm stereo mini jack (monaural output) Line level
|
|
External I/O Terminals
|
ALARM IN 1 / DAY/NIGHT IN, ALARM IN 2 / ALARM OUT,
ALARM IN 3 / AUX OUT (x1 each)
|
|
General
|
|
Safety/EMC Standard
|
[NTSC]
UL (UL60065-1), FCC (Part15 ClassA),
C-UL (CAN/CSA C22.2 No.60950-1),
DOC (ICES003 ClassA)
[PAL]
CE
(EN55022 ClassB, EN55024)
|
|
Power Source/
Consumption
|
24 V AC (50 Hz / 60 Hz): approx. 43 W Heater ON
PoE Plus: approx. 24.0 W (IEEE802.3at Type2 compliant, Class 4 device) Heater ON
|
|
Ambient Operating
Temperature/Humidity
|
–50 °C ~ +55 °C (–58 °F ~ 131 °F) (24 V AC) *4,*5
–30 °C ~ +55 °C (–22 °F ~ 131 °F) (PoE Plus), 90 % or less (without condensation)
|
|
Water and Dust Resistance
|
IP66, IEC60529 measuring standard compatible
|
|
Dimensions
|
∅229 mm x 379 mm (H) (∅9-1/32" x 14-23/25"(H)), Diameter of the dome: 150 mm (5-29/32")
|
|
Mass (approx.)
|
4.6 kg (10.15 lbs.)
|
