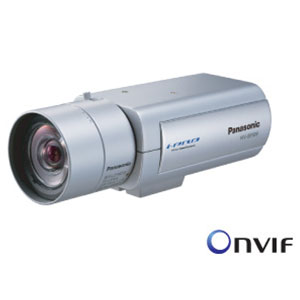

Camera
|
|
Image Sensor
|
1/3 type MOS Sensor
|
|
Effective Pixels
|
Approx. 3.1 megapixel
|
|
Scanning Mode
|
Progressive scan
|
|
Scanning Area
|
4.51 mm (H) x 3.38 mm (V) {3/16 inches (H) x 1/8 inches (V)}
|
|
Minimum Illumination
|
Color: 0.5 lx, BW: 0.3 lx
(F1.4, Auto slow shutter: Off (1/30s), Gain:On(High))
Color: 0.03 lx, BW 0.02 lx
(F1.4, Auto slow shutter: Max. 16/30s, Gain:On(High)) *1
|
|
White Balance
|
AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
|
|
Light Control Mode
|
Outdoor scene: Automatic integration of ALC and ELC
Indoor scene [50 Hz]: Automatic integration of ALC and ELC (up to 1/100 s)
Indoor scene [60 Hz]: Automatic integration of ALC and ELC (up to 1/120 s)
ELC: (up to 1/10,000 sec.)
|
|
Shutter Speed
|
Fix shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at Super Dynamic Off)
|
|
Super Dynamic
|
ON / OFF
|
|
Dynamic Range
|
52 dB typ. (Super Dynamic: ON, Light Control Mode: indoor)
|
|
Face Super Dynamic
|
ON / OFF (Only at Super Dynamic: ON)
|
|
Adaptive Black Stretch
|
ON / OFF (Only at Super Dynamic: OFF)
|
|
AGC
|
ON (LOW, MID, HIGH) / OFF
|
|
Electronic Sensitivity UP
|
OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))
|
|
Day & Night
|
Electrical Mode: OFF / AUTO
|
|
Digital Noise Reduction
|
High / Low
|
|
Video Motion Detection
|
4 areas, Sensitivity: 15 steps, Detection size: 10 steps
|
|
Privacy Zone
|
Up to 2 zones, Gray
|
|
Upside Down
|
ON / OFF
|
|
VIQS
|
Up to 2 zones
|
|
Camera Title (OSD)
|
Up to 20 characters (alphanumeric characters, marks)
|
|
Focus Adjustment
|
ABF/MANUAL, ABF mode upon CL/BW switching: AUTO / PRESET / FIX
|
|
Lens Distortion Conpensation
|
256 steps
|
|
Browser GUI
|
|
Cropping
|
H.264(2) / JPEG(VGA or 640 x 360) / JPEG(QVGA or 320 x 180)
Up to 4 image capture areas can be specified
|
|
Camera Control
|
Brightness, AUX ON / OFF, Zoom (1x, 2x 4x)
|
|
Display Mode
|
Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available.
|
|
Digital Zoom
|
1x, 2x, 4x controlled by browser GUI
|
|
Camera Title
|
Up to 20 alphanumeric characters
|
|
Clock Display
|
Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
|
|
Alarm Control
|
Reset
|
|
One Shot Capture
|
A still picture will be displayed on a newly opened window.
|
|
GUI/Setup Menu Language
|
English, Japanese, Italian, French, German, Spanish, Chinese, Russian
|
|
System Log
|
Up to 100 (Internal)
|
|
Supported OS *2 *3
|
Microsoft® Windows® 7, Microsoft® Windows Vista®,Microsoft® Windows® XP SP3
|
|
Supported Browser
|
Windows® Internet Explorer® 9.0 (32 bit), Windows® Internet Explorer® 8.0 (32 bit),
Windows® Internet Explorer® 7.0 (32 bit), Microsoft® Internet Explorer® 6.0 SP3
|
|
Network
|
|
Network IF
|
10Base-T / 100Base-TX, RJ-45 connector
|
|
Image Resolution
|
|
Image Capture Mode:
2 mega pixel [16:9]
|
H.264: 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps
JPEG (MJPEG): 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps
|
|
Image Capture Mode:
1.3 mega pixel [16:9]
|
H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
JPEG (MJPEG): 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
|
|
Image Capture Mode:
1.3 mega pixel [4:3]
|
H.264: 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps
JPEG (MJPEG): 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps
|
|
Image Capture Mode:
3 mega pixel [4:3]
|
H.264: 1,280 x 960, up to 15 fps
JPEG (MJPEG): 2,048 x1,536, up to 15 fps
|
|
H.264 *4
|
|
Transmission Mode
|
Constant bitrate / Framerate priority / Best effort
|
|
Frame Rate
|
1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
|
|
Bit Rate/Client
|
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /
4,096 / 8,192 / 10,240 / 12,288 / 14,336 kbps
|
|
Image Quality
|
LOW / NORMAL / FINE
|
|
Refresh Interval
|
0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 s
|
|
Transmission Type
|
UNICAST / MULTICAST
|
|
JPEG
|
|
Image Quality
|
10 steps
|
|
Refresh Interval
|
0.1 fps ~ 30 fps
|
|
Transmission Type
|
PULL / PUSH
|
|
Total Bit Rate
|
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
|
|
Supported Protocol
|
IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6,ICMP,ARP
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP,IGMP,ICMP,ARP
|
|
FTP Client
|
Alarm image transmission, FTP periodic transmission
|
|
No. of Simultaneous Users
|
Up to 14 users (Depends on network conditions)
|
|
Cellular Phone Compatibility
|
JPEG image
|
|
Mobile Terminal Compatibilty*5
|
iPad, iPhone, iPod touch (iOS 4.2.1 or later) , AndroidTM mobile terminals
|
|
Face Detection
|
ON / OFF
|
|
Alarm
|
|
Alarm Source
|
1 terminal input, VMD, Command alarm
|
|
Alarm Actions
|
E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output
|
|
Alarm Log
|
1000 logs
|
|
Schedule
|
Alarm / VMD / Access permission / H.264 recording
|
|
Input/Output
|
|
Monitor Output
(for adjustment)
|
NTSC
VBS: 1.0 V [p-p]/75 Ω, NTSC composite, RCA Jack
PAL
VBS: 1.0 V [p-p]/75 Ω, PAL composite, RCA Jack
|
|
External I/O Terminals
|
ALARM IN 1 / DAY/NIGHT IN, ALARM OUT, AUX OUT
|
|
General
|
|
Safety/EMC Standard
|
NTSC
UL (UL60950-1), FCC (Part15 ClassA),
C-UL (CAN/CSA C22.2 No.60950-1),
DOC (ICES003 ClassA)
PAL
CE, IEC60950-1
(EN55022 ClassB, EN55024)
|
|
Power Source and
Power Consumption
|
12V DC: 550 mA *, PoE (IEEE802.3af compliant) / PoE 48 V: 120 mA (Class 2 device)
* FOR UL LISTED MODEL(S), ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY.
|
|
Ambient Operating Temperature
|
-10 °C ~ +50 °C (14 °F ~ 122 °F)
|
|
Ambient Operating Humidity
|
Less than 90 % (no condensation)
|
|
Dimensions
|
75 mm (W) x 65 mm (H) x 132.5 mm (D)
{2-31/32"(W) x 2-9/16"(H) x 5-1/4"(D)} excluding connectors/terminals
|
|
Mass (approx.)
|
420 g (0.93 lbs)
|
|
Finish
|
Fine Silver (501)
|
