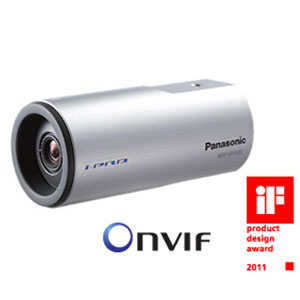

WV-SP105

• 720p HD images up to 30 fps (WV-SP105 only)

•  Newly developed 1.3 Megapixel high sensitivity MOS Sensor

• (WV-SP105)

•  Newly developed 0.32 Megapixel high sensitivity MOS Sensor

• (WV-SP102)

•  Multiple H.264 (High pro?le) streams and JPEG streams ensure

• simultaneous real time monitoring and high resolution recording by

• “UniPhier®”, Panasonic’s proprietary System LSI platform.

•  Full frame (Up to 30 fps) transmission at 1,280 x 960 image size

• (WV-SP105)

•  Full frame (Up to 30 fps) transmission at VGA (640 x 480) image size

• (WV-SP102)

•  2x extra zoom at VGA resolution (WV-SP105 only)

•  2x, 4x digital zoom controlled by browser

•  ABS (Adaptive Black Stretch) technologies deliver wider dynamic

• range compared with conventional cameras.

•  High sensitivity with Simple Day/Night function:

•  0.8 lx (Color), 0.4 lx (B/W) at F2.2 (WV-SP105)

•  2.0 lx (Color), 1.3 lx (B/W) at F2.0 (WV-SP102)

•  VIQS (Variable Image Quality on Speci?ed area) technology allows

• the designated area to retain higher image quality while the

• excluded area will have a decreased image quality, which enables to use lower image ?le size and bit rate.

•  Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.

•  Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving.

•  Superior color reproduction by primary (RGB) color ?lter

•  Electronic sensitivity enhancement:

•  Auto (Up to 16x) / OFF (WV-SP105)

•  Auto (Up to 8x) / OFF (WV-SP102)

•  Selectable light control modes: Indoor scene (50 Hz) / Indoor scene (60 Hz) / ELC (maximum exposure time Indoor scene (50 Hz/60Hz): Flicker caused by ?uorescent lightning  will be automatically compensated.

• ELC (maximum exposure time): The lightning control will be  automatically performed by adjusting shutter speed in the range of ELC.

•  VMD (Video Motion Detector) with 4 programmable detection areas,

• 15 steps sensitivity level and 10 steps detection size

•  Meta data for VMD is supplied to work with the WJ-ND400 playback

• VMD function.

•  Privacy Zone can mask up to 2 private areas, such as house windowsand entrances/exits.

•  Camera title display: Up to 20 alphanumeric characters on the browser, Up to 20 alphanumeric characters embedded in the image

•  Alarm sources including VMD and Panasonic alarm command cantrigger actions such as FTP image transfer, E-mail noti?cation, Indication on browser, and Panasonic protocol output.

•  JPEG Image compression ratio can be changed by alarm so that higher quality image can be provided.

•  Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate.

•  H.264 max. bit rate/client and Total bit rate control allows ?exible network traf?c management. Frame rate priority mode controls bit rate and compression ratio to provide the speci?ed frame rate.

•  Internet mode: H.264 images can be transmitted over HTTP protocol.

•  Multi-language: English / Italian / French / German / Spanish / Russian / Chinese / Japanese

•  IPv4/IPv6 protocol supported

•  Supports DDNS (viewnetcam, RFC2136)

•  Still images (JPEG) can be viewed on mobile phones via Internet.

•  ONVIF compliant model
