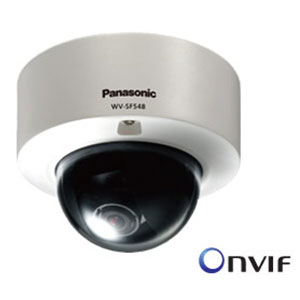

WV-SF548

Super high resolution at Full HD/1,920 x 1,080 created by 3.1Megapixel high sensitivity MOS Sensor.

1080p Full HD images up to 30 fps and 360p image up to 30fps simultaneously.

Combining enhanced “UniPhier®”, Panasonic’s proprietary System LSI platform and 2 areas VIQS (Variable Image Quality on Specified area) function can decrease maximum 50%*1 network bandwidth.

Cropping function enables to provide whole image (1,920 x 1,080) and the part image (640 x 360) simultaneously. Up to 4 image capture areas can be specified, and it is also possible to control the sequence.

Picture in picture function: A cropping image or an alarm image can be added to an image and transmitted.

Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by enhanced “UniPhier®”.

Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range compared to conventional cameras.

Face Super Dynamic Range technology ensures clear face image.

High sensitivity with Day & Night (IR) function:0.5 lx (Color), 0.06 lx (B/W) at F1.3 (WV-SF549)

High sensitivity with Day & Night (Electrical) function:0.5 lx (Color),

0.3 lx (B/W) at F1.3 (WV-SF548)

Using Panasonic distinctive LDC (Lens Distortion Compensation) function, natural image without distortion can be monitored though using wide angle lens.

ABF (Auto Back Focus) ensures easy installation.

ABF ensures stable focus in both color and B/W modes. (WV-SF549)

Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.

Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving.

Superior color reproduction by primary (RGB) color filter.

Electronic sensitivity enhancement: Auto (Up to 16x) / OFF

Selectable light control modes: Outdoor scene / Indoor scene (50 Hz) / Indoor scene (60 Hz) / Fixed electronic shutterOutdoor scene: Electronic shutter and ALC lens iris control are automatically controlled depending on the mode and luminance level.Indoor scene (50 Hz / 60 Hz): Flicker caused by fluorescent lightning will be automatically compensated. Fixed electronic shutter: Up to 1/10,000 fixed electronic shutter can be selectable.

3x Extra optical zoom at 360p resolution. (Picture Mode : 2 Mega pixel [16:9] )

VMD (Video Motion Detection) with 4 programmable detection areas,

15 steps sensitivity level and 10 steps detection size

Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits.

2x, 4x digital zoom controlled by browser.

Camera title display: Up to 20 alphanumeric characters on the browser

Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDXC/SDHC/SD memory recording(WV-SF549), FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, and Panasonic alarm protocol output.

Full duplex bi-directional audio allows interactive communication between camera site and monitoring site. (WV-SF549)

JPEG Image compression ratio can be changed by alarm so that higher quality image can be provided.

Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate.

SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG) (WV-SF549)

H.264 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate.

Internet mode: H.264 images can be transmitted over HTTP protocol.

Multi-language: English / Italian / French / German / Spanish / Russian / Chinese / Japanese

IPv4/IPv6 protocol supported.

Supports SSL, DDNS (viewnetcam, RFC2136)

Still images (JPEG) can be viewed on mobile phones via the Internet.

Onvif compliant model

Vandal resistant mechanism for high reliability

2.8 ~ 10.0 mm, 3.6x Varifocal Auto Iris Lens

Fog compensation

Camera
Image Sensor	1/3 type MOS Sensor
Effective Pixels	Approx. 3.1 megapixel
Scanning Mode	Progressive scan
Scanning Area	4.51 mm (H) x 3.38 mm (V) {3/16 inches (H) x 1/8 inches (V)}
Minimum Illumination	Color: 0.5 lx, BW: 0.06 lx (F1.3, Auto slow shutter: Off (1/30s), Gain:On(High)) Color: 0.03 lx, BW 0.004 lx (F1.3, Auto slow shutter: Max. 16/30s, Gain:On(High)) *1
White Balance	AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
Light Control Mode	Outdoor scene: Automatic integration of ALC Indoor scene [50 Hz]: Automatic integration of ALC (up to 1/100 s) Indoor scene [60 Hz]: Automatic integration of ALC (up to 1/120 s)
Shutter Speed	Fix shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at Super Dynamic Off)
Super Dynamic	ON / OFF
Dynamic Range	52 dB typ. (Super Dynamic: ON)
Face Super Dynamic	ON / OFF (Only at Super Dynamic: ON)
Adaptive Black Stretch	ON / OFF (Only at Super Dynamic: OFF)
AGC	ON (LOW, MID, HIGH) / OFF
Electronic Sensitivity UP	OFF / AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s))
Day & Night	Mode: AUTO1 / AUTO2 / ON / OFF, Level:High / Low, with external control
Digital Noise Reduction	High / Low
Video Motion Detection	4 areas, Sensitivity: 15 steps, Detection size: 10 steps
Privacy Zone	Up to 2 zones, Gray
Upside Down	ON / OFF
VIQS	Up to 2 zones
Camera Title (OSD)	Up to 20 characters (alphanumeric characters, marks)
Focus Adjustment	ABF/MANUAL
Lens Distortion Conpensation	256 steps
Lens
Focal Length	2.8 mm - 10 mm, 3.6x (8.4 mm - 30 mm 10.8x with Extra optical zoom (at 360P))
Angular Field of View*2	H: 24.2 °(TELE) ~ 80.6 °(WIDE)
Maximum Aperture Ratio	1 : 1.3 (WIDE) ~ 1 : 3.0 (TELE)
Focusing Range	0.3 m ~ ∞
Adjusting Angle
Adjusting Angle	Horizontal: 180 ° (clockwise), 170 ° (counterclockwise), Vertical: ±75 °, Image tilt adjustment range: ±100 °
Browser GUI
Cropping	H.264(2) / JPEG(VGA or 640 x 360) / JPEG(QVGA or 320 x 180) Up to 4 image capture areas can be specified
Camera Control	Brightness, AUX ON / OFF, Zoom (1x, 2x 4x)
Display Mode	Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available.
Digital Zoom	1x, 2x, 4x controlled by browser GUI
Camera Title	Up to 20 alphanumeric characters
Clock Display	Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
Alarm Control	Reset
One Shot Capture	A still picture will be displayed on a newly opened window.
GUI/Setup Menu Language	English, Japanese, Italian, French, German, Spanish, Chinese, Russian
Supported OS 3 4	Microsoft® Windows® 7, Microsoft® Windows Vista®,Microsoft® Windows® XP SP3
Supported Browser	Windows® Internet Explorer® 9.0 (32 bit), Windows® Internet Explorer® 8.0 (32 bit), Windows® Internet Explorer® 7.0 (32 bit), Microsoft® Internet Explorer® 6.0 SP3
Network
Network IF	10Base-T / 100Base-TX, RJ-45 connector
Image Resolution
Image Capture Mode: 2 mega pixel [16:9]	H.264: 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps JPEG (MJPEG): 1,920 x 1,080 / 640 x 360 / 320 x 180, up to 30 fps
Image Capture Mode: 1.3 mega pixel [16:9]	H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps JPEG (MJPEG): 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps
Image Capture Mode: 1.3 mega pixel [4:3]	H.264: 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps JPEG (MJPEG): 1,280 x 960 / VGA(640 x 480) / QVGA(320 x 240), up to 30 fps
Image Capture Mode: 3 mega pixel [4:3]	H.264: 1,280 x 960, up to 15 fps JPEG (MJPEG): 2,048 x1,536, up to 15 fps
H.264 *5
Transmission Mode	Constant bitrate / Framerate priority / Best effort
Frame Rate	1 / 3 / 5 / 7.5 / 12 / 10 / 15 / 20 / 30 fps
Bit Rate/Client	64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8,192 / 10,240 / 12,288 / 14,336 kbps
Image Quality	LOW / NORMAL / FINE
Refresh Interval	0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 s
Transmission Type	UNICAST / MULTICAST
JPEG
Image Quality	10 steps
Refresh Interval	0.1 fps ~ 30 fps
Transmission Type	PULL / PUSH
Total Bit Rate	64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
Supported Protocol	IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6,ICMP,ARP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP,IGMP,ICMP,ARP
FTP Client	Alarm image transmission, FTP periodic transmission
No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
Cellular Phone Compatibility	JPEG image
Network
Mobile Terminal Compatibilty*6	iPad, iPhone, iPod touch (iOS 4.2.1 or later) , AndroidTM mobile terminals
Face Detection	ON / OFF (with XML notification)
Alarm
Alarm Source	1 terminal input, VMD, Command alarm
Alarm Actions	E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output
Alarm Log	1000 logs
Schedule	Alarm / VMD / Access permission / H.264 recording
Input/Output
Monitor Output (for adjustment)	NTSC VBS: 1.0 V [p-p]/75 Ω, NTSC composite, RCA Jack PAL VBS: 1.0 V [p-p]/75 Ω, PAL composite, RCA Jack
External I/O Terminals	ALARM IN 1, ALARM OUT, AUX OUT
General
Safety/EMC Standard	NTSC UL (UL60950-1), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60950-1), DOC (ICES003 ClassA) PAL CE, IEC60950-1 (EN55022 ClassB, EN55024)
Power Source and Power Consumption	12V DC: 510 mA , PoE (IEEE802.3af compliant) / PoE 48 V: 115 mA (Class 2 device) FOR UL LISTED MODEL(S), ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY.
Ambient Operating Temperature	-10 °C ~ +50 °C (14 °F ~ 122 °F)
Ambient Operating Humidity	Less than 90 % (no condensation)
Shock Resistance	Compliant with 20J IEC60068-2-75/ IEC 62262 IK10
Dimensions	∅132 mm x 102.5 mm (H) {∅5-3/16 inches x 4-1/32 inches (H)}
Mass (approx.)	710g (1.57 lbs)
Finish	Main body: Aluminum die cast, sail white Dome section: Clear polycarbonate resin
