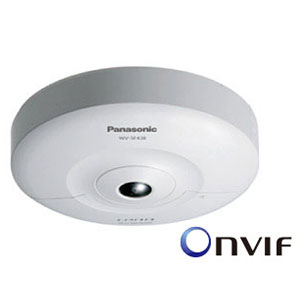

Camera
|
|
Image Sensor
|
1/3 type MOS Sensor
|
|
Effective Pixels
|
Approx. 3.1 megapixels
|
|
Scanning Mode
|
Progressive
|
|
Scanning Area
|
4.51 mm (H) x 3.38 mm (V) {3/16 inches (H) x 1/8 inches (V)}
|
|
Minimum Illumination
|
Color: 1.5 lx (F2.4, Auto slow shutter: Off (1/30s), Gain:On(High))
Color: 0.1 lx (F2.4, Auto slow shutter: Max. 16/30s, Gain:On(High))*1
BW: 1.2 lx (F2.4, Auto slow shutter: Off (1/30s), Gain:On(High))
BW: 0.08 lx (F2.4, Auto slow shutter: Off (16/30s), Gain:On(High)) *1
|
|
White Balance
|
AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)
|
|
Light Control Mode
|
Indoor scene (50 Hz / 60 Hz) / ELC
|
|
Shutter Speed
|
With Super Dynamic On
ELC (1/30 s)
With Super Dynamic Off
ELC (1/30 s), ELC (3/100 s), ELC (3/120 s), ELC (2/100 s), ELC (2/120 s),
ELC (1/100 s), ELC (1/120 s), ELC (1/250 s), ELC (1/500 s), ELC (1/1,000 s),
ELC (1/2,000 s), ELC (1/4,000 s), ELC (1/10,000 s)
|
|
Super-Dynamic
|
ON / OFF
|
|
Dynamic Range
|
52 dB typ. (only at Super-Dynamic On)
|
|
Adaptive Black Stretch
|
On/Off (only at Super-Dynamic Off)
|
|
AGC
|
ON (HIGH) / ON (MID) / ON (LOW) / OFF
|
|
Electronic Sensitivity UP
|
OFF (1/30 s), Max. 2/30 s, Max. 4/30 s, Max. 6/30 s, Max. 10/30 s, Max. 16/30 s
|
|
Day & Night(electrical)
|
OFF / AUTO
|
|
Digital Noise Reduction
|
HIGH / LOW
|
|
Video Motion Detection
|
ON / OFF, 4 areas available
|
|
Video analytics Face Detection
|
Off/On/On with face frame display
However, face detection is not supported when "Fisheye" or "Quad streams" is selected for the image type.
|
|
Auto mode:
|
Auto pan/ Preset sequence
Auto mode can only be used when the image type is Quad PTZ or Single PTZ.
|
|
Self return:
|
10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min
Self return can only be used when the image type is Quad PTZ or Single PTZ.
|
|
Privacy Zone
|
ON / OFF (up to 4 zones available)
|
|
VIQS
|
On/Off (up to 2 areas available)
However, the VIQS function is not supported when "Quad PTZ", "Single PTZ" or "Quad streams" are selected.
|
|
Camera Title (OSD)
|
Up to 20 characters (alphanumeric characters, marks) , On/Off
However, you can specify characters to be displayed on each of the four screens when "Quad streams" is selected.
|
|
Lens
|
|
Focal Length
|
0.837 mm
|
|
Angular Field of View
|
Horizontal: 188 °, Vertical: 181 °
|
|
Maximum Aperture Ratio
|
1:2.4 (Fixed)
|
|
Focusing Range
|
0.3 m ~ ∞
|
|
Browser GUI
|
|
Camera Control
|
Pan/Tilt/Digital Zoom, Preset, Auto Mode, Self Return, Fisheye Control, Brightness,
AUX ON / OFF
|
|
Display Mode
|
Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available.
|
|
Digital Zoom
|
1x, 2x, 4x controlled by browser GUI (Panorama, Double Panorama, Fisheye mode)
1x ~4x (Quad PTZ or Single PTZ mode)
|
|
Camera Title
|
Up to 20 alphanumeric characters
|
|
Clock Display
|
Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
|
|
Alarm Control
|
Reset
|
|
One Shot Capture
|
A still picture will be displayed on a newly opened window.
|
|
Audio
|
Mic (Line) Input: ON / OFF Volume adjustment: Low / Middle / High,
Audio Output: ON / OFF Volume adjustment: Low / Middle / High
|
|
SD Memory Data Download
|
Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded.
|
|
GUI/Setup Menu Language
|
English, Italian, French, German, Spanish, Russian, Chinese,Japanese
|
|
System Log
|
Up to 100 (Internal), Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs
|
|
Supported OS *2 *3
|
Microsoft® Windows® 7, Microsoft® Windows Vista®,
Microsoft® Windows® XP SP3
|
|
Supported Browser
|
Windows® Internet Explorer® 9.0 (32 bit), Windows® Internet Explorer® 8.0(32 bit),
Windows® Internet Explorer® 7.0 (32 bit), Microsoft® Internet Explorer® 6.0 SP3
|
|
Network
|
|
Network IF
|
10Base-T / 100Base-TX, RJ-45 connector (female)
|
|
Image Resolution *4
|
|
2M Panorama[16:9]/
2M Double
Panorama [16:9]:
|
H.264(1): 1920x1080 / 640x360 / 320x180, up to 30 fps
H.264(2): 640x360 / 320x180, up to 30 fps
JPEG: 1920x1080 / 640x360 / 320x180, up to 30 fps
|
|
1M Panorama [16:9]/
1M Double
Panorama [16:9]:
|
H.264(1): 1280x720 / 640x360 / 320x180, up to 30 fps
H.264(2): 640x360 / 320x180, up to 30 fps
JPEG: 1280x720 / 640x360 / 320x180, up to 30 fps
|
|
Panorama + Quad PTZ/
Panorama + Single PTZ/
Double Panorama
+ Quad PTZ/
Double Panorama
+ Single PTZ:
|
When using distribution of "Panorama" or "Double panorama"
H.264(1): 1920x1080 / 640x360 / 320x180, up to 15 fps
JPEG: 1920x1080 / 640x360 / 320x180, up to 15 fps
|
|
When using distribution of "Quad PTZ" or "Single PTZ"
H.264(2): 1280x960 /640x480 / 320x240, up to 15 fps
JPEG: 1280x960 / 640x480 / 320x240, up to 15 fps
|
|
VGA Quad streams
|
Ch1-Ch4 640x480 max.30 fps
* Only for H.264 images.
* There are specification limitations such as the SD memory card function being unavailable.
|
|
3M Fisheye [4:3]:
|
H.264(1): 1280x960, up to 15 fps
JPEG: 2048x1536, up to 15 fps
|
|
1.3M Fisheye [4:3]:
|
H.264(1): 1280x960 / 640x480 / 320x240, up to 30 fps
H.264(2): 640x480 / 320x240, up to 30 fps
JPEG: 1280x960 / 640x480 / 320x240, up to 30 fps
|
|
H.264
|
|
Transmission Mode
|
Constant bitrate / Framerate priority / Best effort
|
|
Frame Rate
|
1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
|
|
Bit Rate/Client
|
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 /
8,192 / 10,240 / 12,288 / 14,336 kbps
|
|
Image Quality
|
LOW / NORMAL / FINE
|
|
Refresh Interval
|
0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 s
|
|
Transmission Type
|
UNICAST / MULTICAST
|
|
JPEG
|
|
Image Quality
|
10 steps
|
|
Refresh Interval
|
0.1 fps ~ 30 fps
|
|
Transmission Type
|
PULL / PUSH
|
|
Audio Compression
|
G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps
|
|
Audio Mode
|
OFF / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
|
|
Authentication for Audio
|
Level 1 only / Level 2 higher / All users
|
|
Total Bit Rate
|
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
|
|
Supported Protocol
|
IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP,
DHCPv6, MLD, ICMP, ARP
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP,
DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
|
|
FTP Client
|
Alarm image transmission, FTP periodic transmission
(When the FTP transmission is failed, backup on an optional SD memory card is available.)
|
|
No. of Simultaneous Users
|
Up to 14 users (Depends on network conditions)
|
|
SDXC/SDHC/SD
Memory Card (Option)
|
H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC
JPEG recording: Manual REC / Alarm REC (Post) / Backup upon network failure Compatible
SD (SDHC/SDXC) card: Panasonic 1 GB, 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB** model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
|
|
Face Detection
|
ON / ON with face frame display / OFF
*"3M Fisheye [4:3]", "1.3M Fisheye [4:3]", and "VGA Quad streams" modes
cannot use the Face Detection function.
|
|
Cellular Phone Compatibility
|
JPEG image, AUX control (by access level)
|
|
Mobile Terminal Compatibility
|
iPad, iPhone, iPod touch (iOS 4.2.1 or later)
Android™ mobile terminals
|
|
Alarm
|
|
Alarm Source
|
3 terminals input, VMD, Command alarm
|
|
Alarm Actions
|
SDXC/SDHC/SD memory recording, E-mail notification, Indication on browser,
FTP image transfer, Panasonic protocol output
|
|
Alarm Log
|
With SDXC/SDHC/SD memory card: 5,000 logs, without SDXC/SDHC/SD
memory card: 1,000 logs
|
|
Schedule
|
Alarm / VMD / Access permission / H.264 recording
|
|
Input/Output
|
|
Microphone/Line Input
|
Internal microphone, φ3.5 mm monaural mini jack, Input impedance: Approx. 2 kΩ
|
|
For microphone input
|
Applicable microphone: Plug-in power type, Supply voltage: 2.5 V ±0.5 V
|
|
For line input
|
Input level: Approx. -10 dBV
|
|
Audio Output
|
φ3.5 mm stereo mini jack (monaural output), Output impedance: Approx.
600 Ω, Line level
|
|
External I/O Terminals
|
ALARM IN 1, ALARM IN 2/ ALARM OUT, ALARM IN 3/ AUX OUT (x1 for each)
|
|
General
|
|
Mounting method
|
Ceiling/ Wall/ Tripod
|
|
Safety/EMC Standard
|
NTSC:
UL (UL60950-1), FCC (Part15 ClassA),
C-UL (CAN/CSA C22.2 No.60950-1),
DOC (ICES003 ClassA)
PAL:
CE, IEC60950-1
(EN55022 ClassB, EN55024)
|
|
Power Source and Power
Consumption
|
12V DC, PoE (IEEE802.3af compliant)
12 V DC*: 540 mA/ 6.5 W
PoE 48 V: 125 mA/ 6.0 W (Class 2 devices)
* FOR UL LISTED MODEL(S), ONLY CONNECT 12 V DC
CLASS 2 POWER SUPPLY.
|
|
Ambient Operating Temperature
|
-10 °C to +50 °C {14 °F to 122 °F}
|
|
Ambient Operating Humidity
|
Less than 90 % (no condensation)
|
|
Dimensions
|
φ150 mm x 44 mm (H) {φ5-29/32 inches x 1-23/32 inches (H)}
|
|
Mass (approx.)
|
Main body: Approx. 370 g {0.82 lbs}
Camera attachment: Approx. 90 g {0.20 lbs}
|
|
Finish
|
Main body: ABS resin, sail white
|
