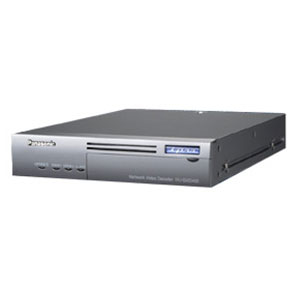

WJ-GXD400

• Equipped with a HDMI interface supporting 1,920 x 1,080 display size

• 1x 4VGA (1,280 x 960) image with 2x VGA images or 6x VGA images can be displayed in a split screen.

• Each of VGA images can be displayed at 30 or 25 frames/sec. (NTSC/PAL).

• Up to 256 cameras, including cameras connected to the i-Pro Network Video Encoder (WJ-GXE500/WJ-NT304/WJ-NT314), can be registered.

• Supports tour sequence and group sequence

• Up to 64 camera groups can be registered and called up in response to power on, group sequence and schedule program.

• Supports camera site alarm signal: Alarm indication can be displayed and alarm terminal output can be activated.

• Supports Multicast/Unicast for efficient network usage

• Single channel audio decoding G.726

• Schedule function: Pre-programmed display mode with camera assignment can be activated by time schedule.

• Selectable Multiscreen border color: White / Gray / Black / OFF

• High speed network interface (100Base-TX / 1000Base-T) and maintenance port (10Base-T)

• Setup can be made by the browser GUI.

• Superior reliability with an embedded OS

• Installation flexibility and reliability with –10 °C to +50 °C (14 °F to 122 °F) operating temperature range
